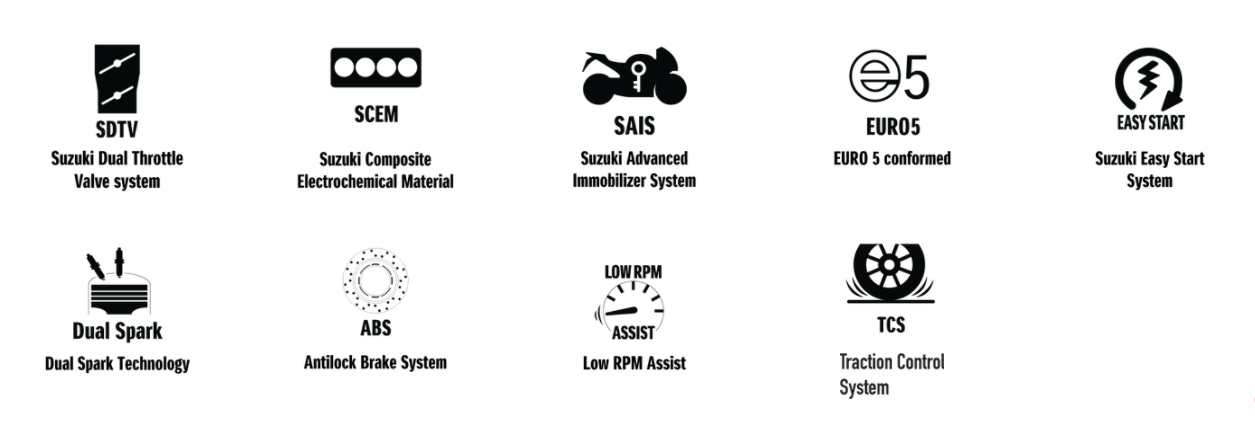

Rain or shine, the adoption of the Traction Control is there to support you, when riding out from those slippery campgrounds, or riding through stone-paved city street. Advanced technologies are there to give you that extra feel of confidence, to back up your urge to go those few miles further.
Merge out to the fast lane, Wonder into small allies. Forget the engine and concentrate on your adventure, Or rev it hard and enjoy the ride. Always the required output, in the required behavior.
Inheriting the Beak from the original DR-BIG, the V-Strom soars high, out of the city, over the mountains, and over all borders. The heritage from DR BIG, is ready to support your adventures, either BIG or daily.
|Overall length:||2,275 mm||Lubrication system:||Wet sump|
|Overall width:||910 mm||Transmission:||6-speed constant mesh|
|Overall height:||1,405 mm||Primary reduction ratio:||2.088 (71/34)|
|Wheelbase:||1,560 mm||Final reduction ratio:||3.133 (47/17)|
|Ground clearance:||170 mm||Front suspension:||Telescopic, coil spring, oil damped|
|Seat height:||835 mm||Rear suspension:||Link type, coil spring, oil damped|
|Curb mass:||216 kg||Rake / Trail:||25°40' / 107 mm|
|Engine type:||4-stroke, 4-cylinder, liquid-cooled, DOHC||Front brake:
|Bore × Stroke:||81.0 mm x 62.5 mm||Rear brake:||Disc|
|Displacement:||645 cm3||Front tire size:||110/80R19M/C 59V, tubeless|
|Compression ratio:||11.2 : 1||Rear tire size||150/70R17M/C 69V, tubeless|
|Fuel system:||Fuel injection||Ignition system:
||Electronic ignition (Transistorized)|
|Starter system:||Electric||Fuel tank capacity:||20.0L (5.3/4.4 US/Imp gal)|
|Oil capacity (Overhaul):
||3.0L (3.2/2.6 US/lmp qt)|
